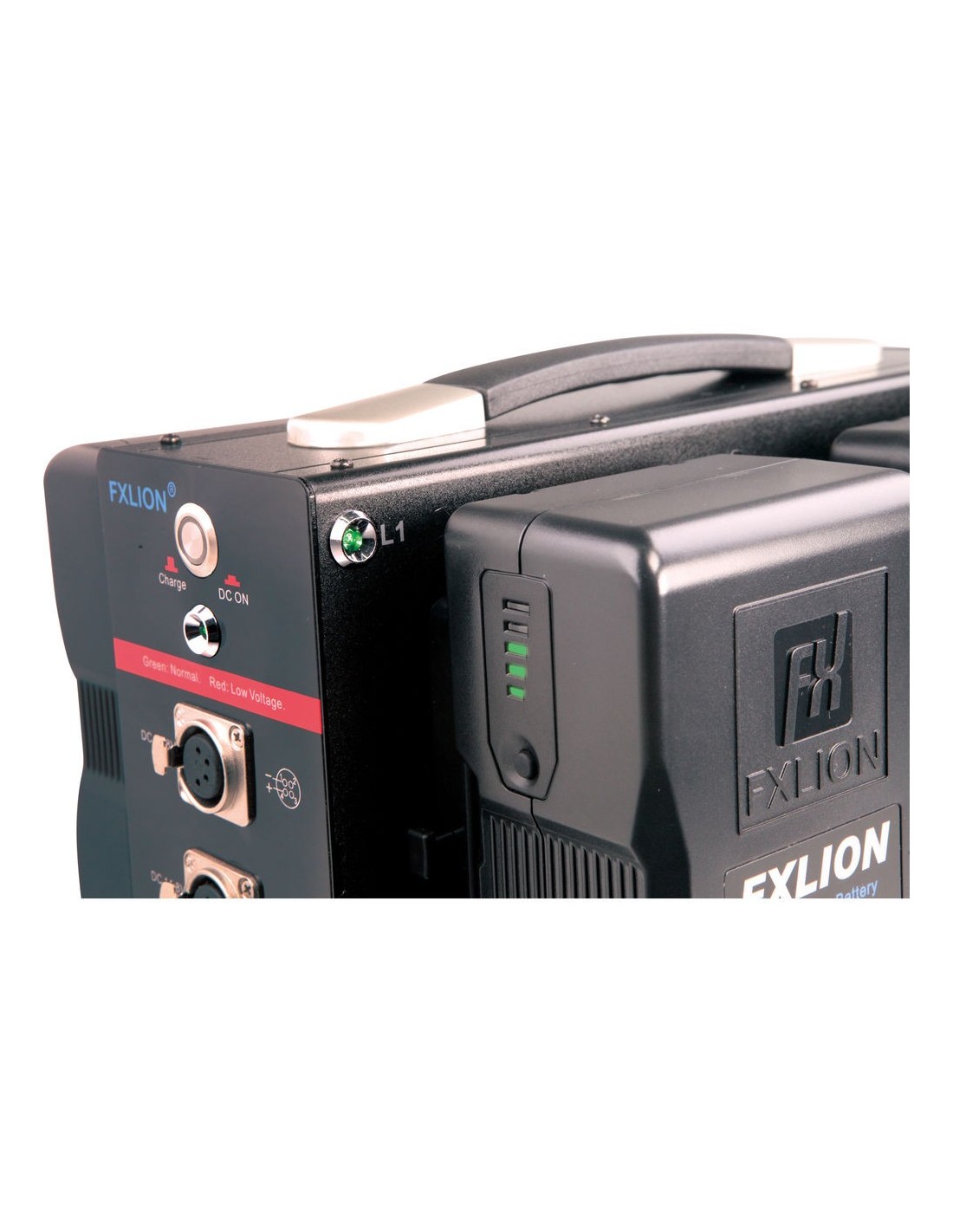

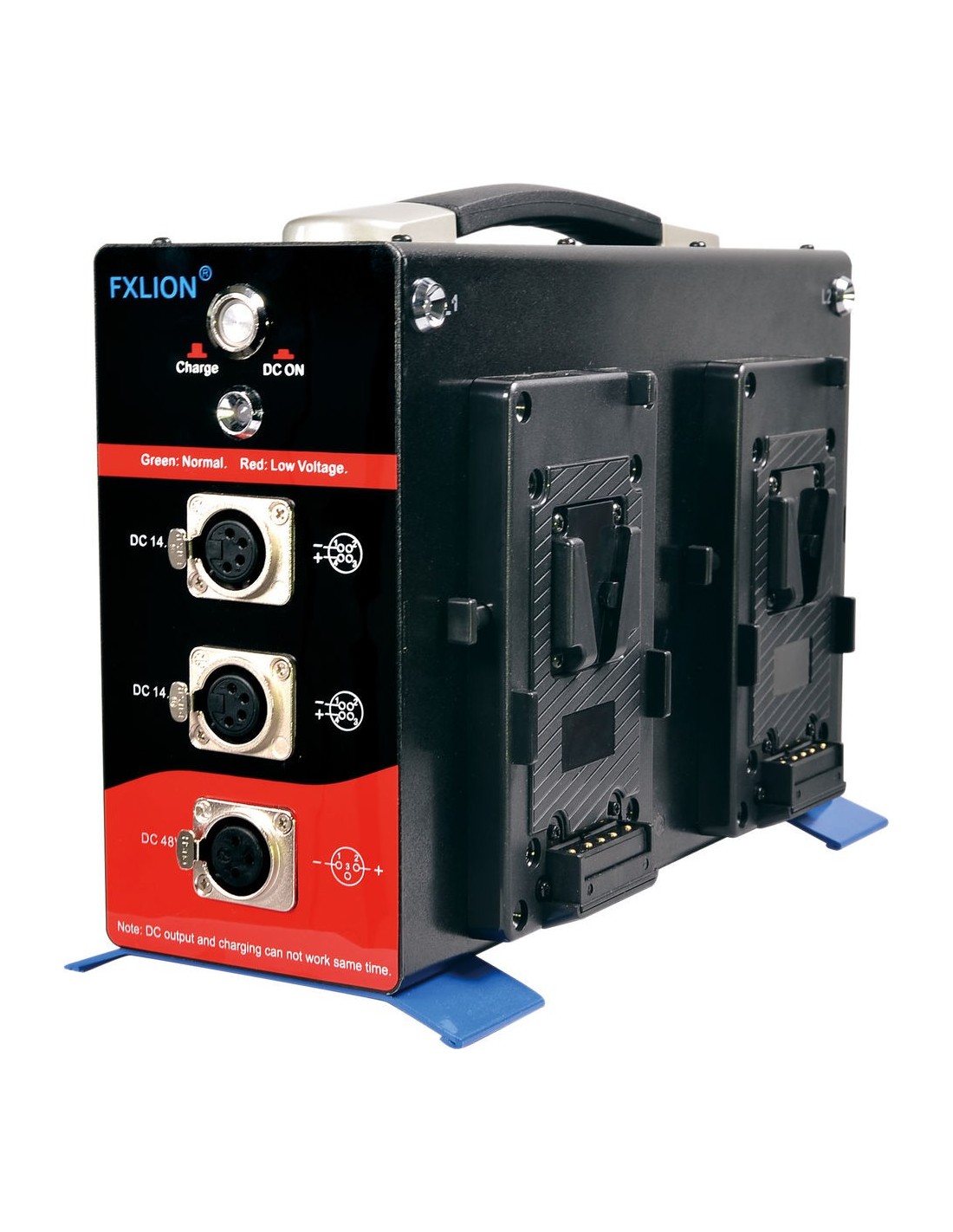

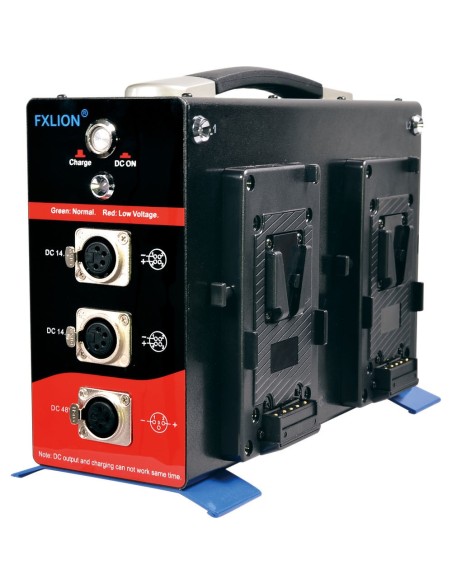

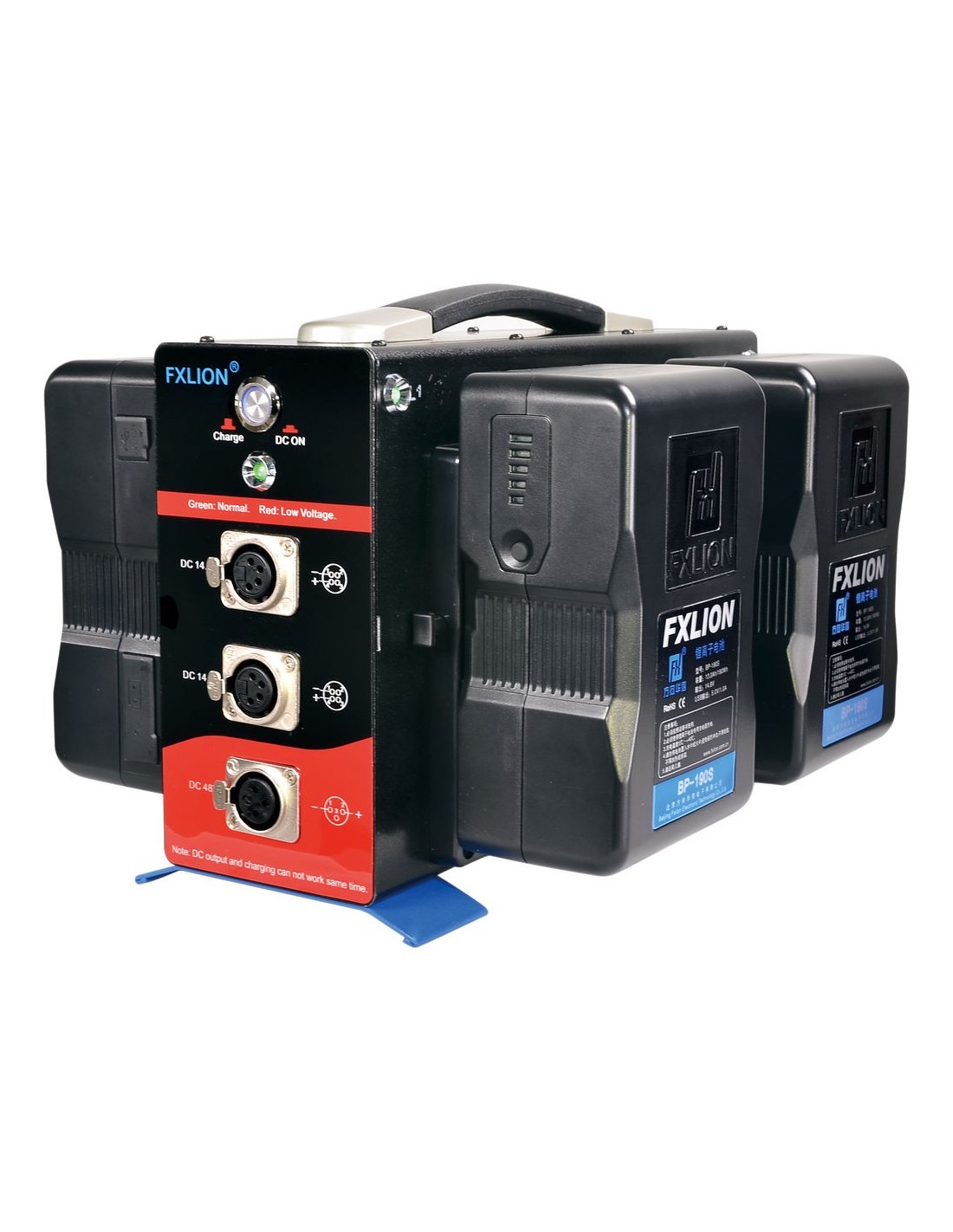

Fxlion V-Mount Adapter and Charger with 48V/10A Single / 14.8 Dual Channel Output

The only affordable way to Battery power your ARRI S60 Sky Panel on FULL POWER for over 2 hours. (using 4x FX-HP265S V lock batteries[recommended] )

This is a practical battery power solution for the Arri Skypanel 48V LED light. A 48V 10A battery power supply designed to fully meet the needs of  the Arri S60 460W. By using four V lock high currant batteries, you can get the full maximum output from your Sky Panel S60.

Main Features

• Special power solution for Arri Skypanel 48V LED light.
• 48V 10A power design,fully meet the use of Arri S60 460W power.
• Use four pieces big capacity, high rate batteries, you can get maximum power working effect.
• Two function:battery output adapter/charger. Totally achieve the function that one device could offer portable DC power bank and charging battery. Achieve the integration of charger function and adapter function perfectly.
• Dual-channel 14.8V and mono-channel 48V output could work at the same time. Solve customer’s need to carry as less equipment as possible for outdoor shooting. One adapter/charger and four pieces battery could power for two pieces 12V LED panel light and one piece 48V LED light.
• Each channel charging output 16.8V/2A, could charge four pieces battery simultaneously.
• With Working Status indicator and circuit protection for each channel.
• Under voltage indicator for the whole set.

DC adapter:  ·DC input: battery 14.8V*4 ·DC output: 48V/10A(MAX) ·DC output: 14.8V*2/10A(MAX) ·Power: 480W ·14.8V and 48V work simultaneously.
Charger:   ·Charging input: 100~240VAC   47~63Hz ·Charging output: 16.8V/2.0A*4 ·Charge four pieces battery simultaneously.

Specifications

• 13.5 x 9 x 22.5 cm
• Weight – 3.3kg
• PL-4DC48S is using V mount battery.
• PL-4DC48A is using Gold mount battery.
• Adapter and Charger can not work at the same time.
• Adapter’s output power depends on battery, high capacity/high rate batteries
  are advised to use for best performance.
