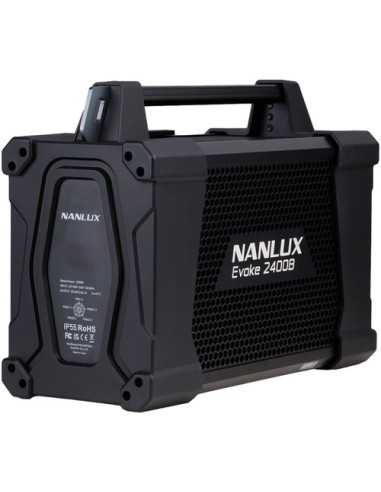

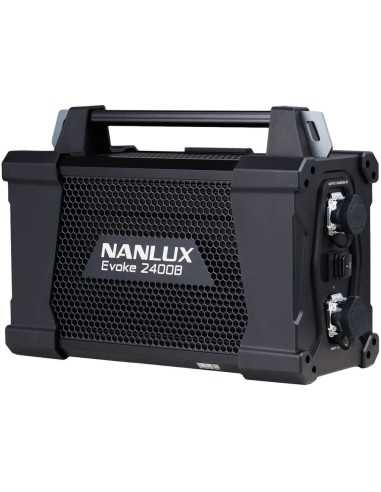

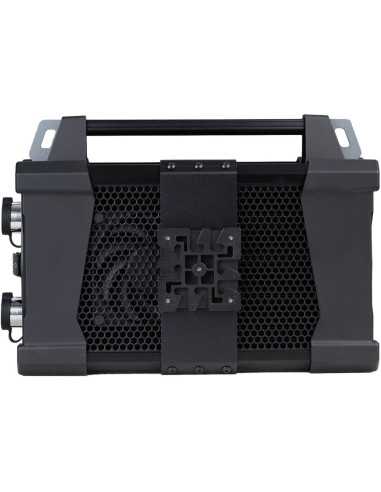

Nanlux Evoke 2400B Bi-Color LED Monolight Kit with 45° Reflector and Light-Only Flight Case

Whether in the studio or on location, the Nanlux Evoke 2400B bi-colour LED monolight is a versatile and robust lighting solution, offering excellent color rendition and flexibility for photography and film professionals. It offers a wide color temperature range from 2700 to 6500K with a high CRI of 96 and TLCI of 97, ensuring accurate color rendering, while green and magenta adjustments ensure perfect color adjustment.

The brightness of the light can be precisely adjusted from 0 to 100% with various dimming curves such as linear and S-curve for consistent color rendering. Compact with dimensions of 16.8 x 12.5 x 10.4 inches, this monolight offers a high output of 41,910 lux at 3m. It features flexible control options, including DMX/RDM, wired DMX and wireless controls via NANLINK, LumenRadio or Bluetooth. The Evoke 2400B is designed for both studio and location use, with an IP55 rating for weather resistance and includes a 45° reflector, an adjustable yoke, a 24.6' DC cable and a super clamp. It is ready for global use with 100-240 V AC power supply and offers a Dual Draw selector for 75% power at 15 A or full power at 20 A.

Main features

• CCT range of 2700K - 6500K with G/M adjustment +/- 80

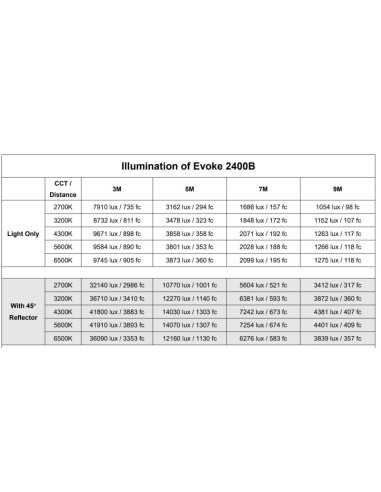

• up to 41,910 Lux at 3 m (at 5600 K with 45° reflector)
• CRI value: 96
• TLCI value: 97
• TM-30 Rf: 95
• TM-30 Rg: 100
• SSI (Tungsten: 84
• SSI (D56): 74
• various control options via on-board control on the lamp,
• via remote control, via Bluetooth via NANLINK app, DMX/RDM, LumenRadio CRMX, Art-Net/sACN and wired control
• 12 built-in effects
• Four fan modes: Smart, Full Speed, Low Speed and Off
• Dimmable from 100% to 0% in 0.1% increments
• Compatible with NL-Mount accessories
• Firmware updates via USB connection on the lamp
• including a small flight case (only for the lamp, without reflector)

Control

• via the on-board control on the lamp,
• via remote control, via Bluetooth
• via NANLINK app
• DMX/RDM,
• LumenRadio CRMX
• Art-Net/sACN
• and wired control

Connections

• USB port for firmware updates
• LAN1
• LAN2
• Connection for cable control
• DMX In
• DMX Out
• DC In

Dimensions

• Appliance: approx. 427.3 x 316.4 x 265.1 mm
• Power: approx. 389.2 x 172.2 x 268.3 mm

Weight

• Appliance approximately 15 kg
• Support: about 2 kg
• Power: about 11.58kg

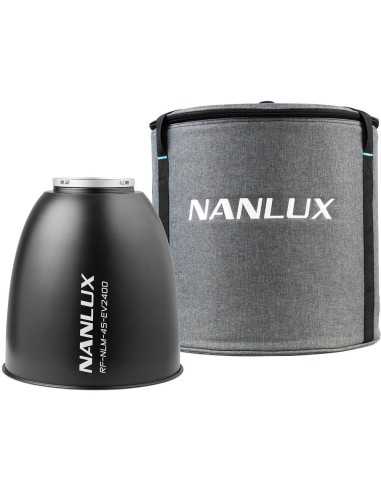

• RF-NLM-45-EV2400 Reflector: approx. 2.12 kg

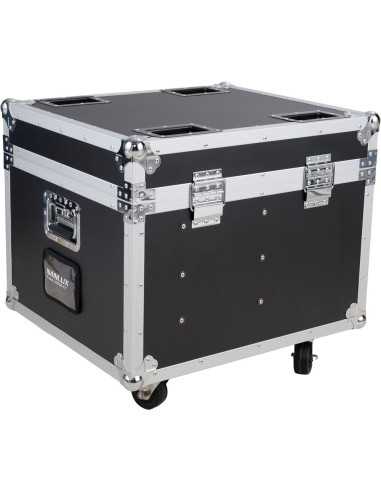

• Flight Case: approx. 26.3 kg

Package contents

• Nanlux Evoke 2400B Bi-Color LED Monolight
• Yoke
• Electrical power supply
• 45° reflector
• USB stick
• Quick release clamp
• Remote control
• DC connection cable (24.6')
• AC power cord (9.8')
