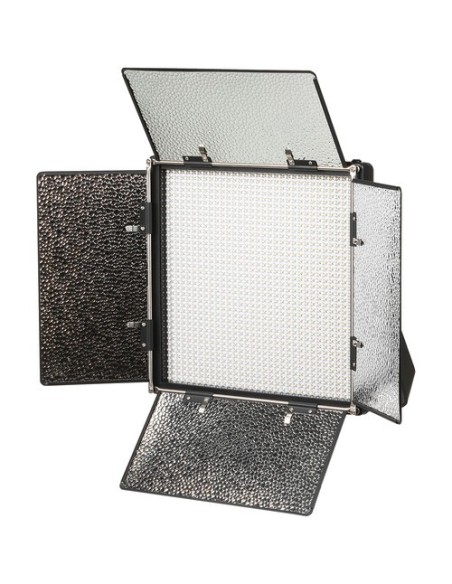

Ikan Rayden 1 x 1 Bi-Color Studio LED Light with DMX

Introducing Ikan’s new brand of Rayden LED lights! What you can expect from the high CRI 45-degree lenses is extremely bright light! The Rayden’s bi-color adjustability ranges from 3200K-5600K and works well with any lighting production. With a 50-degree beam angle, you can easily light a large area with one fixture. The Rayden 1 x 1 light is equivalent to a 900-watt incandescent light. Versatility is a key feature of the Rayden LED lights. The 30-degree yoke, baby 5/8″ and junior 1 1/8″ combo pin allow you to attach and configure the light in different ways. Strong, steel tension knobs on the yoke also lock the light firmly in place when in use. On the back, the large tyellow button/knob allows you to adjust the light’s settings with a few simple clicks. This includes the brightness, color temperature and DMX channel. The LED readout also provides very precise measurements. This light package includes Ikan’s reliable barndoors with intensifiers. Best of all, the new Rayden LED lights have a maximum wattage draw of 82 watts at 0.6 amps so you can plug it in just about anywhere!

Consistent Color and Brightness
High CRI LED lenses output a very bright, strong light. The Rayden LED lights feature a bi-color adjustable color range between 3200K-5600K. A 50-degree wide beam angle offers plenty of light to illuminate your subject.

Single Knob Control
Whether it's brightness, color or DMX, you can adjust all of these settings with a single knob at any time. The new LED readout is brighter and provides a quick reference of the light output with precise measurements.

New Yoke Design and Better Components
The 30-degree angled yoke provides unobstructed movement of the light. The new, stronger steel tension knobs securely lock the light in place at any angle.

Industry Standard Combo Pin
The baby 5/8" and junior 1-1/8" combo pin includes a right-angle receiver hole that allows you to attach it to any grip stand.

Incandescent Watts Equivalency
The Rayden LED light is equivalent to an 800W incandescent light, which makes them ideal for interview settings.

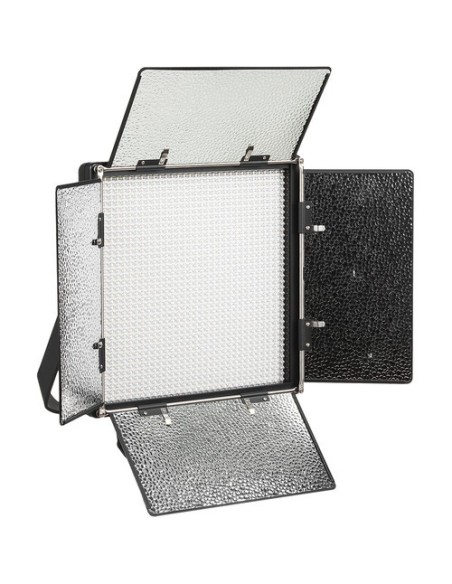

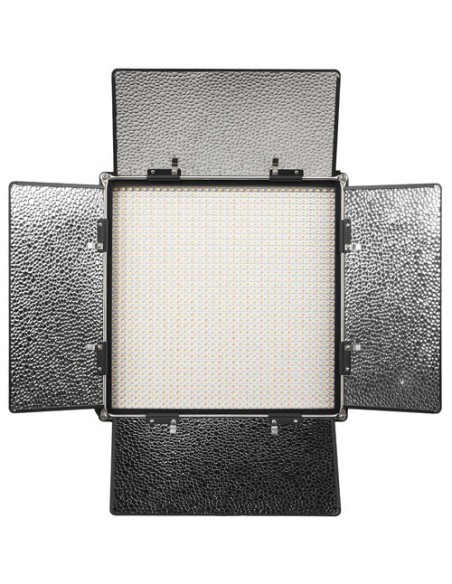

Barndoors Included
ikan's reliable barndoors with intensifiers allow you to shape the light to fit your needs.

Features

95 CRI LEDs
Bi-Color adjustable from 3200K-5600K
Bright consistent light across all color temperatures
Beam Angle of 50 degrees
DMX512 In and Out
Baby 5/8 inch/Junior 1-1/8 Combo Pin adapter with right angle receiver hold
30 degree angled yoke for unobstructed movement
Stronger steel tension knobs for locking the light into place
Single knob control for adjusting color, brightness, or DMX
New LED Readout screen giving you precise adjustments
Included barn door with intensifiers
Watts equivalent to 800 watts incandescent light

In the Box

1 x Light fixture
1 x Power supply with cable
1 x Yoke with mount

Specification

Photometrics

3200K
663 fc / 7143 Lux at 3.3' / 1 m*
294 fc / 3175 Lux at 4.9' / 1.5 m
70 fc / 764 Lux at 9.8' / 3 m

5600K
697 fc / 7506 Lux at 3.3' / 1 m*
309 fc / 3336 Lux at 4.9' / 1.5 m
73 fc / 789 Lux at 9.8' / 3 m

*Standard Metric Calculated Internally Based on Closest Distance

Color Temperature 3200 to 5600K
Color Accuracy Standard CRI 95
Cooling System Passive
Dimming Yes
Display None
Housing Material Resin
Number of LEDs 1184
Beam Angle 50°
Battery Plate 1 x Gold Mount- 1 x V-Mount
DMX Connection XLR 5-Pin
Fixture Mount Combination 1-1/8" Stud and 5/8" Receiver
Accessory Mount None
Remote Control Type DMX
AC Input Power 110 to 220 VAC, 50 / 60 Hz
DC Input Power 18 VDC
Consumption Per LED 0.2 W
Max Power Consumption 150 W
Power Supply Output 15 VDC, 7 A
IP Rating IP20
Fixture Dimensions 14.0 x 14.0 x 3.0" / 35.5 x 35.5 x 7.6 cm
Fixture Weight 6.0 lb / 2.7 kg
