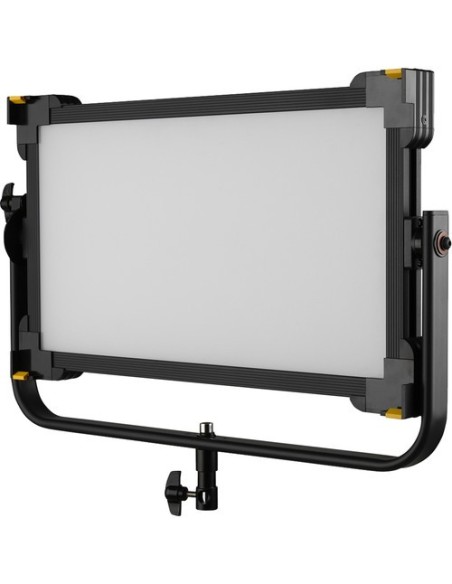

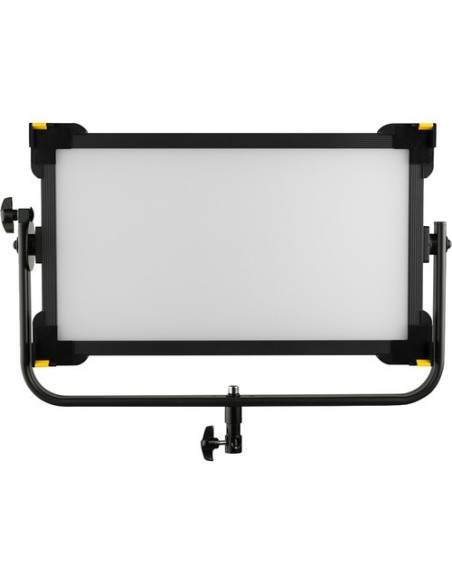

Ikan Lyra Soft Panel 1 x 2 Studio and Field LED Light

Ikan’s Lyra Studio DMX brand of soft lights have high CRI chip LEDs paired with a soft diffusion panel, giving you a very soft wrapping light. The 1/2-stop soft diffusion panel is permanently attached to the light and is designed to be placed at the optimal distance from the COB (chip on board) LEDs to create a soft and evenly diffused light source. Its Bi-color adjustability from 3200K-5600K is great for any light setup. Also, the brightness of the light is consistent across all color temperatures. The beam angle of the light is a wide 110 degrees, making it possible to light a large area with a single fixture. The best thing about a Lyra soft light is the nice clean shadow you get from the light itself. The heavy duty yoke and baby 5/8″ /junior 1 1/8″ combo pin allow you to attach to any stand or use in any studio configurations. The quick set disk locking system allows professionals to lock the light in place when aiming the fixture. The large yellow knob on the back allows you to control the light with a few simple clicks. You can control the brightness, color temperature, and the DMX channel, making adjustments as needed. The LED readout gives you the ability to have very precise measurements. The 1 x 2 LED soft panel is an extremely bright soft light that gives the end user the control to light sets or any scene on a stage. These lights are great for any talk show or broadcast news shows.

High CRI Chip LED’s
The high CRI Chip LEDs give you a strong output and has an integrated 1/2-stop soft diffusion panel allowing for very bright diffused light. The 1/2-stop soft diffusion panel is permanently attached to the light and installed at an optimal distance from the COB LEDs. Please note that the light will not operate correctly if the diffusion panel is damaged or removed.

Consistent Color and Brightness
The Lyra LBX20 has a bi-color adjustable color range and gives you a very consistent bright light across all color temperatures.

Industry Standard Combo Pin
The Baby 5/8″ / Junior 1-1/8″ Combo Pin adaptor with a right angle receiver hole allows for the use of any grip stand.

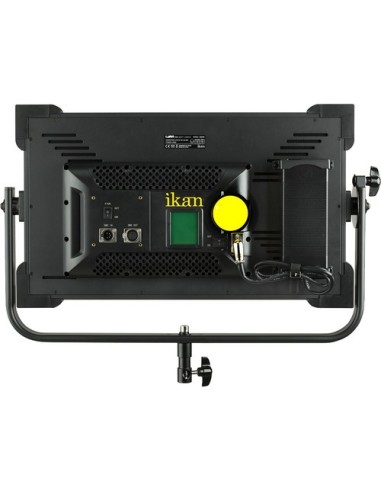

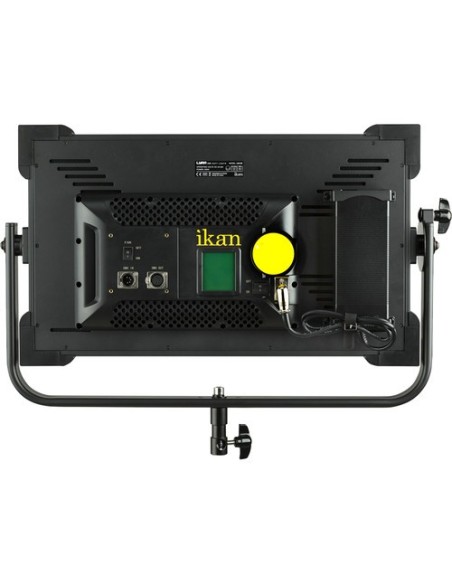

Single Knob Control
Users can easily adjust the brightness, color, or DMX, on the fly by using the single control knob on the back of the lights.

LED Readout
The new bright LED readout gives you a quick reference of the light’s output.

Quick Set Disk Locking System
The quick set disk locking system allows you to position the light when up on a grid.

110° Beam Angle & Single Shadow
The wide 110° beam angle gives you plenty of soft light and a more natural shot with a single shadow.

Features

95 CRI Chip LEDs paired with 1/2 stop soft diffusion panel
Bi-Color adjustable from 3200K-5600K
Non-removable soft diffuser allow bright consistent light across all color temperatures
Beam Angle of Soft panel 110 degrees
A Clean single shadow without the artifacts
DMX In and Out
Baby 5/8 inch/Junior 1-1/8 Combo Pin adapter with right angle receiver hole
Quick set disk locking system for positioning the light
Single knob control for adjusting color, brightness or DMX
New LED Readout screen giving you precise adjustments
Fan switch to enable active cooling

In the Box

In the Box

1 x Power Cord
1 x Lyra Bi-Color DMX Studio Light
1 x Power Supply
1 x Yoke Mount

Specification

Photometrics

110° at 3200K
325 fc / 3502 Lux at 3.3' / 1 m*
540 fc / 5812 Lux at 2' / 0.6 m
226 fc / 2432 Lux at 3.9' / 1 m
117 fc / 1259 Lux at 5.9' / 1.8 m
67 fc / 721 Lux at 7.9' / 2 m
50 fc / 538 Lux at 9.8' / 3 m
37 fc / 398 Lux at 11.8' / 3.6 m
29 fc / 312 Lux at 13.8' / 4 m
22 fc / 236 Lux at 15.7' / 4.8 m
17 fc / 182 Lux at 17.7' / 5 m
16 fc / 172 Lux at 20' / 6 m
110° at 5600K
346 fc / 3720 Lux at 3.3' / 1 m*
652 fc / 7018 Lux at 2' / 0.6 m
240 fc / 2583 Lux at 3.9' / 1 m
127 fc / 1367 Lux at 5.9' / 1.8 m
74 fc / 796 Lux at 7.9' / 2 m
54 fc / 581 Lux at 9.8' / 3 m
41 fc / 441 Lux at 11.8' / 3.6 m
32 fc / 344 Lux at 13.8' / 4 m
25 fc / 269 Lux at 15.7' / 4.8 m
20 fc / 215 Lux at 17.7' / 5 m
16 fc / 172 Lux at 20' / 6 m

*Standard Metric Calculated Internally Based on Closest Distance

Color Temperature 3200 to 5600K

Color Accuracy Standard

CRI 96 at 3200K
TLCI 96 at 3200K
CRI 96 at 4400K
TLCI 98 at 4400K
CRI 97 at 5600K
TLCI 98 at 5600K

Cooling System Fan/Passive Combo
Dimming Yes
10 to 100%
Display LED
Housing Material Metal, Plastic
Beam Angle 110°
DMX Connection XLR 5-Pin
Yoke Mount TVMP/ Hex Bolt
Fixture Mount Combination 1-1/8" Stud and 5/8" Receiver
Yoke Material Metal
Yoke Type Yoke/Bracket
Remote Control Type DMX
AC Input Power 100 to 220 VAC, 50 / 60 Hz
Power Source AC Adapter
Max Power Consumption 205 W
Power Pass-Thru No
Power Supply
Power Supply Output 27 VDC
Fixture Dimensions 29.0 x 20.0 x 5.0" / 73.7 x 50.8 x 12.7 cm
Fixture Weight 18 lb / 8.2 kg
