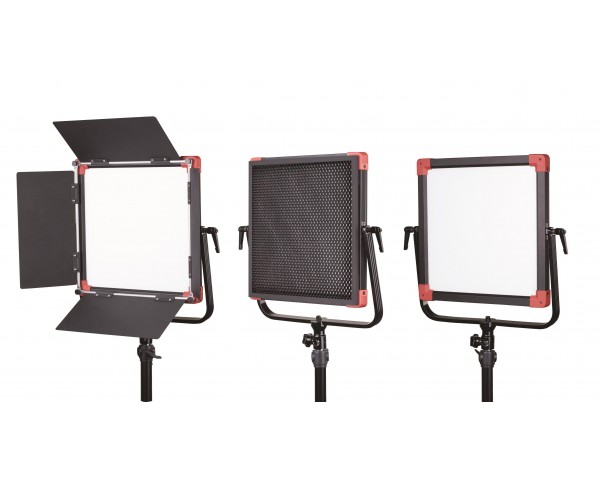

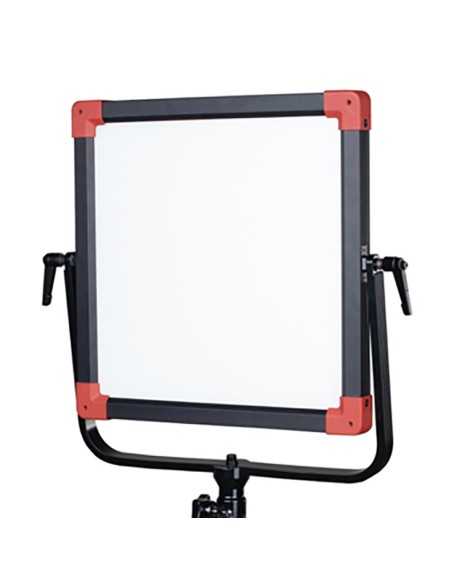

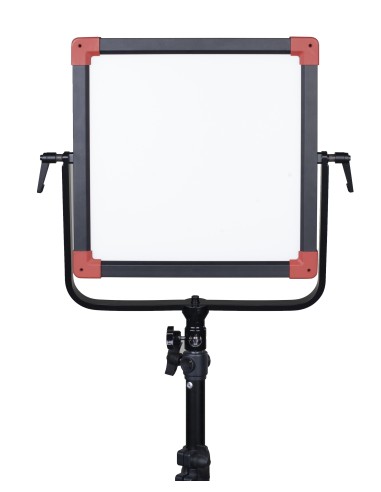

Swit PL-E60 Bi-Colour Portable SMD Panel LED Light - 60W With V- Mount Battery Plate

Swit PL-E60 Bi-Colour Portable SMD Panel LED Light - 60W. 320pcs Edge Mounted LEDs
PL-E60 is specially designed for field portable lighting applications. 320pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E60 can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit and field video productions.
Laser Dots 90° Light Guide

The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.

320pcs Edge Mounted LEDs
PL-E60 is specially designed for field portable lighting applications. 320pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E60 can output bright, soft and equally spread light, meanwhile, the light body is slim enough and portable, which is an ideal light source for interview kit and field video productions.

Laser Dots 90° Light Guide
The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.

SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost. Then the slim edge mounted light can also be high brightness.

1500 Lux @ 1 Metre
PL-E60 outputs 60W power, feeds 1500Lux luminance at 1 metre distance (centre), much brighter than other similar size LED panels. The effective beam angle reaches 70°, bounded by 50% decline. PL-E60 also supports 0 to 100% PWM digital dimming, smoothly and non-flickering.

Bi-Colour Temperature
PL-E60 alternated with 2700K and 6500K LEDs, and the output colour temperature can be continuously adjustable between 2700K and 6500K.

High Colour Reveal Ability
CRI (Colour Rendering Index) is a measure of the ability of a light source to reveal the colours of various objects faithfully in comparison with a natural light source. And TLCI (Television Lighting Consistency Index) is special for the colour reveal ability by camera sensor. Max value 100.

The normal LED light has 80-85 CRI or TLCI, while PL-E60 offers the super high CRI at 98 and TLCI at 99, and will not lose the objects original colours.

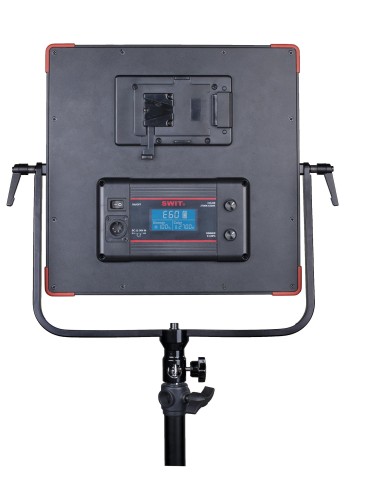

LCD Screen Display
The rear LCD screen can display the current dimmer percentage, colour temperature value, and remaining battery indications.

Quick Adjust Mode
PL-E60 supports quick adjusting brightness and colour temperature:

Press the Dimmer knob, it will switch from 1% stepping to 10% stepping, to quick adjust brightness;

Press colour temperature knob, it will switch from 50K stepping to the following commonly used colour temperature selection: 2700K / 3200K / 4500K / 5600K / 6500K.

11-36V Wide Input Voltage
PL-E60 supports 11-36V wide range voltage input, with 4-pin XLR DC socket, and equipped with V-mount or Gold mount plate to power by batteries.

(The default battery plate is V-mount.)

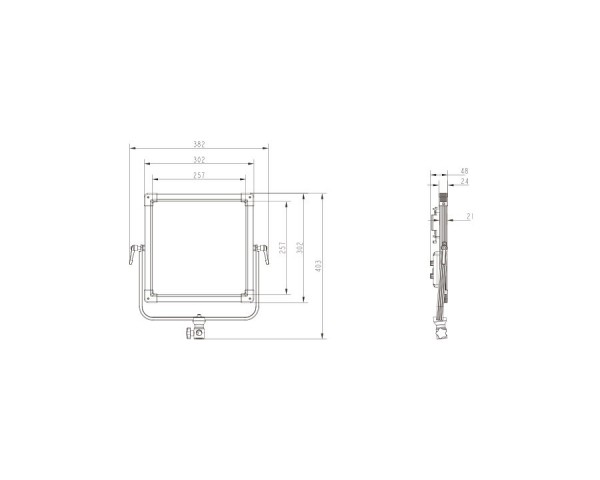

Specification
